Three Phase Pad Mounted Transformer

Base kVA: 45 kVA to 12,000 kVA

Primary voltage: 2400 V to 46,000 V

Secondary voltage: 120 V to 24,940 V

Basic Impulse Level (BIL): 30kV to 250kV

DOWNLOAD

Introduce
Company Advantages
Products Advantages
Parameters
Applications

What is a Pad mounted Transformer?

A padmount or pad-mounted transformer is a ground-mounted electric power distribution transformer in a locked steel cabinet mounted on a concrete pad.

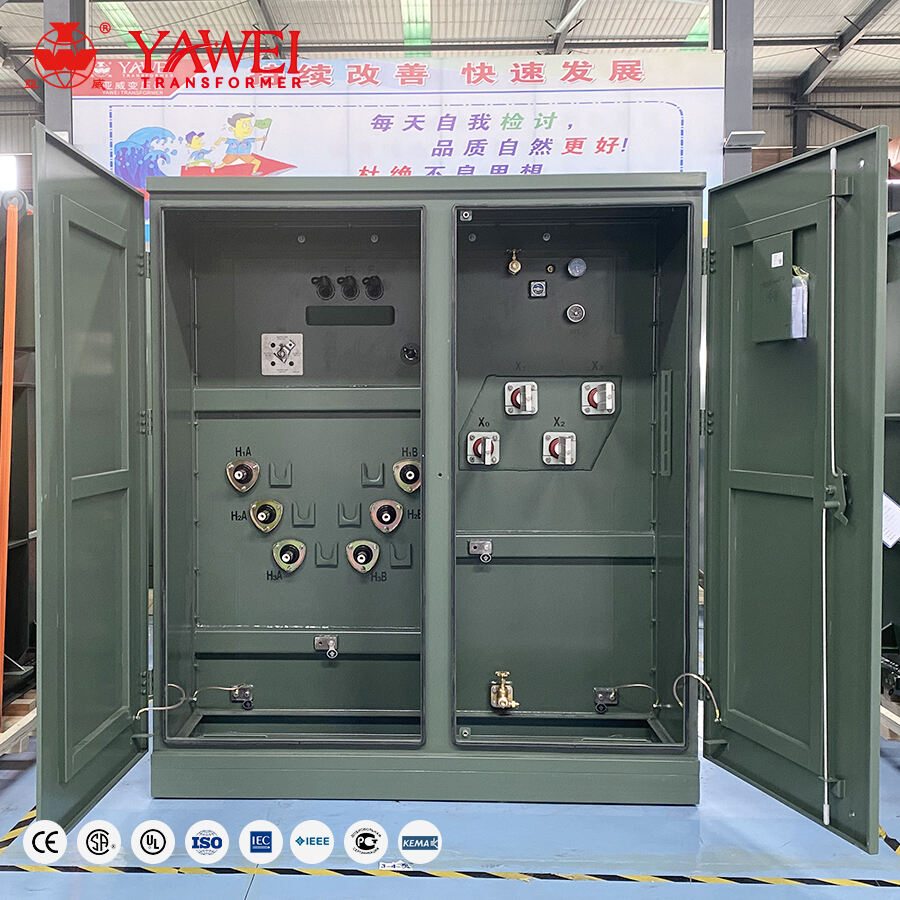

3 Phase Standard Electric Three Phase Wholesale 1000kva Factory Price 75Kva-5000Kva Pad Mount Transformer

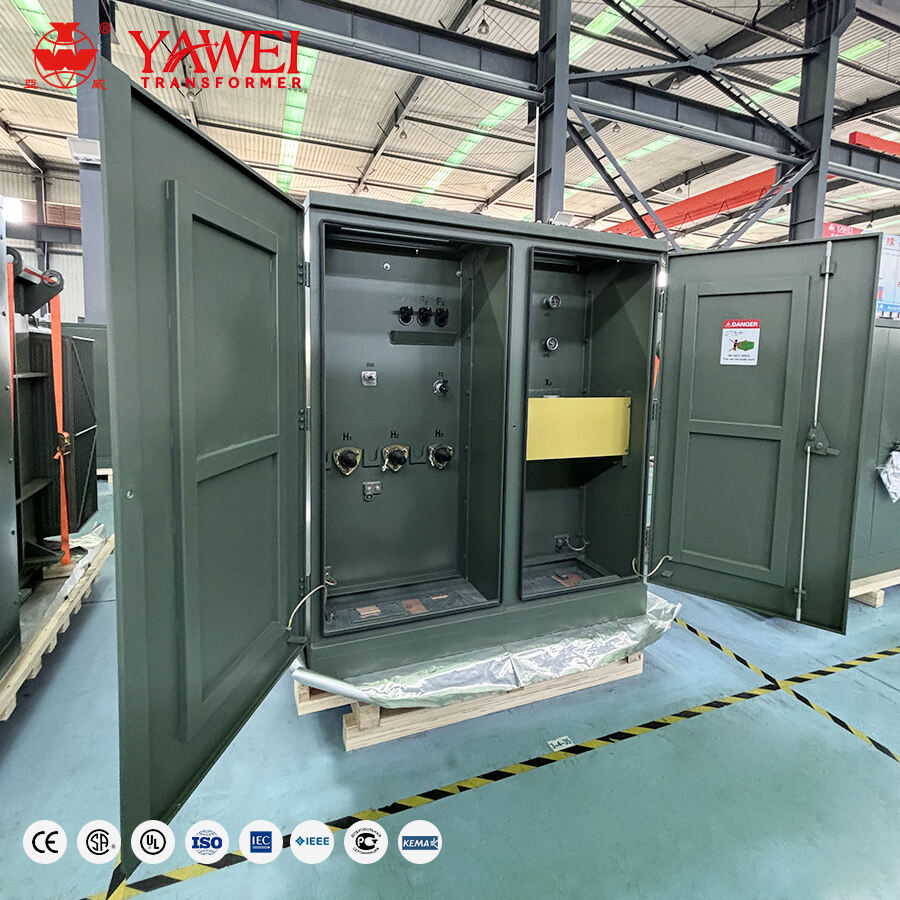

7.6 KV 13.8kV 3 Phase Pad Mounted Electric Oil Type Transformer 1500kVA

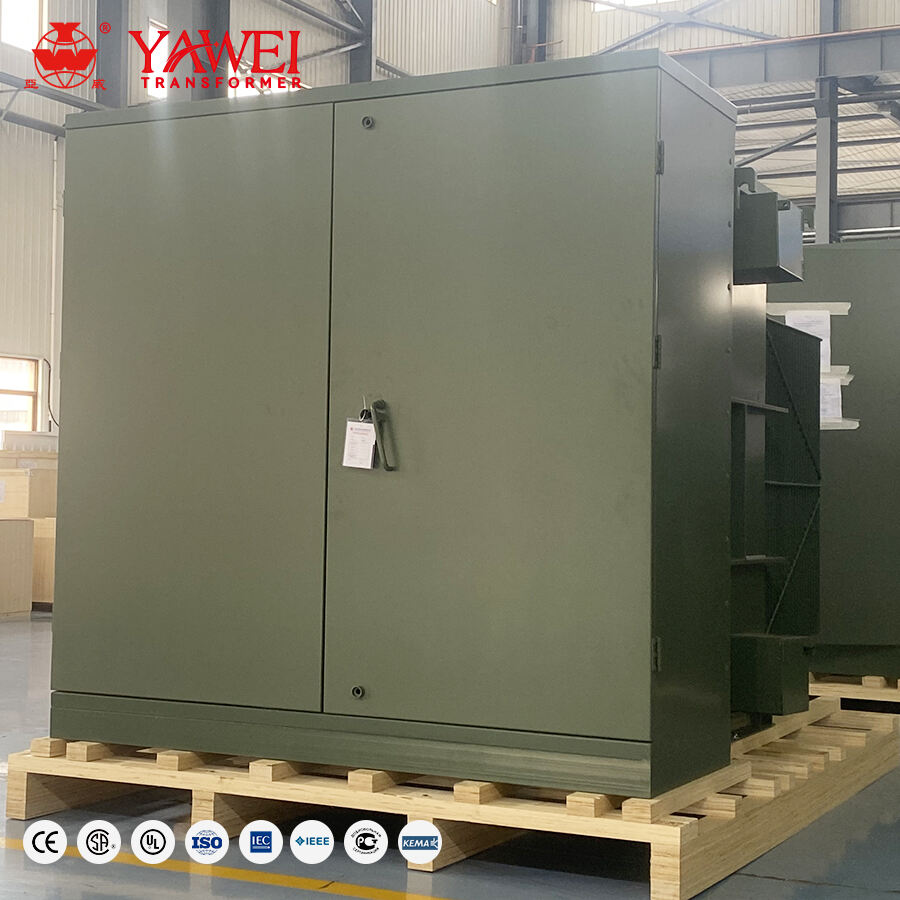

75KVA-5000KVA Factory Price Custom Three Phase Loop Feed 3 Phase 1000kva Pad Mounted Transformer

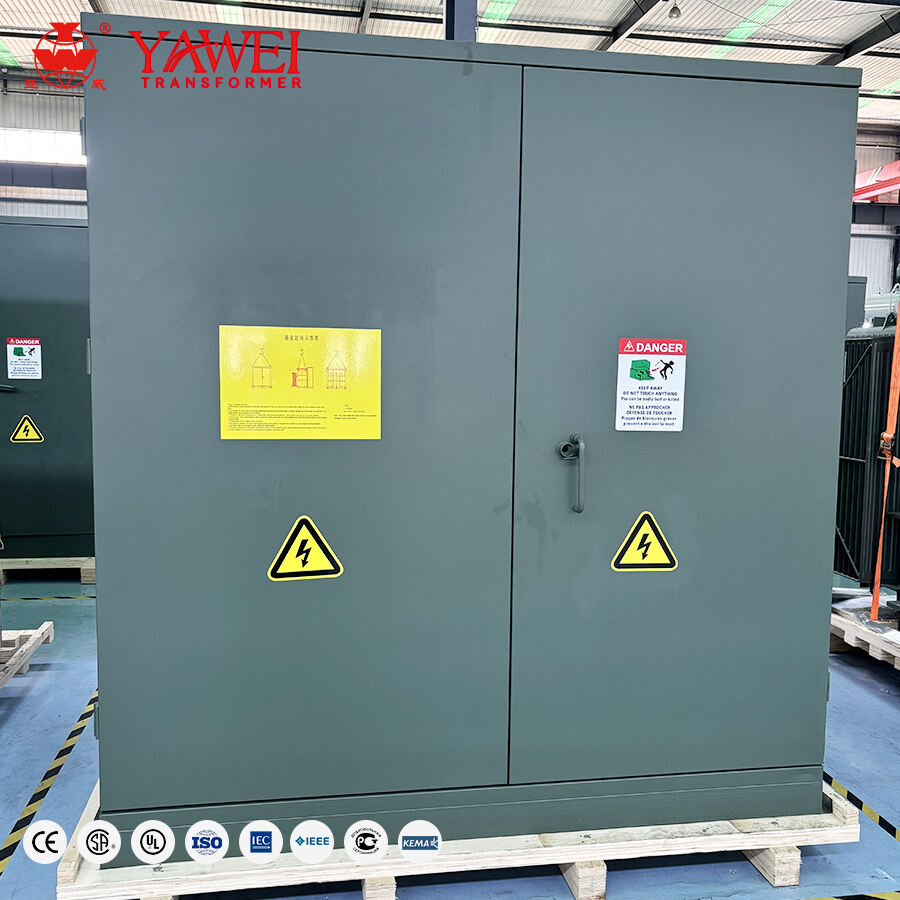

300kVA 400kVA 3 Phase Pad Mounted Transformer for Electrical Power

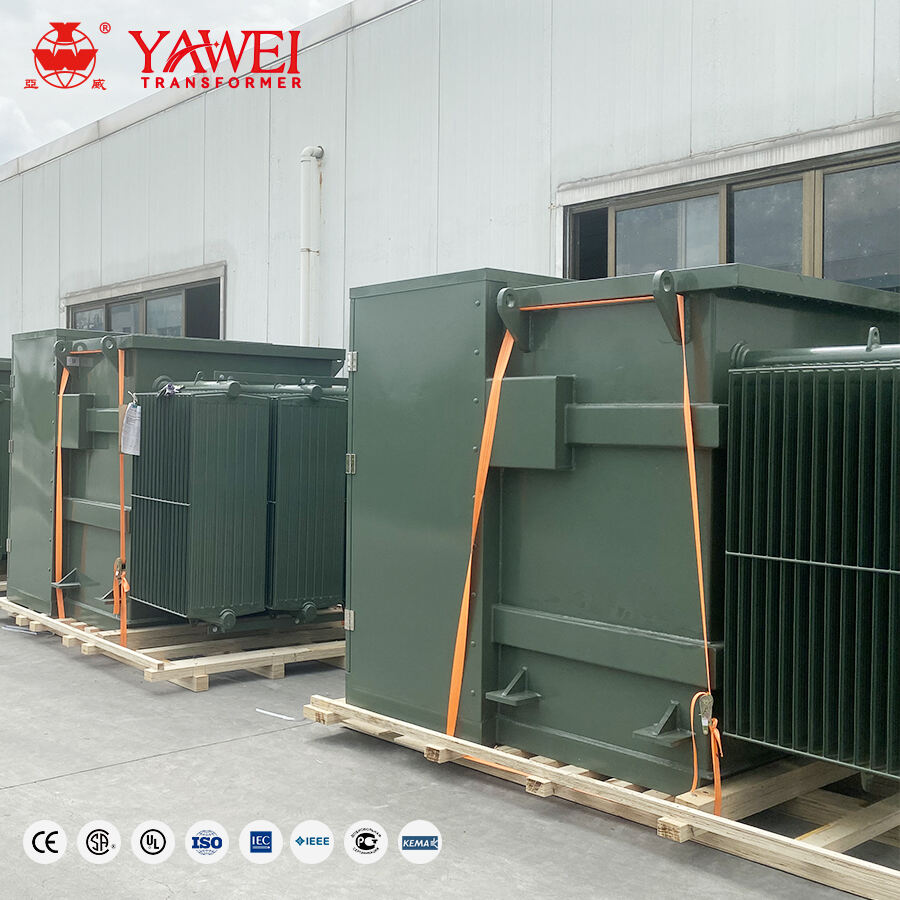

500kva Three Phase Pad Mounted Transformer 12.47KV 60HZ ONAN Oil-Immersed Loop Feed
750kVA 4160V 480V Three Phase Oil Cooling Pad Mounted Electric Transformer

Since all energized connection points are securely enclosed in a grounded metal housing, a padmount transformer can be installed in places that do not have room for a fenced enclosure.

Padmount transformers are used with underground electric power distribution lines at service drops to step down the primary voltage on the line to the lower secondary voltage supplied to utility customers. A single transformer may serve one large building or many homes.

Company Advantages

JiangsuYawei transtormers have been successtuly exported to severa countries incuding the United Stotes, Canada, Panama, Venezuela, Uzbekistan,Australia,and Bulgaria.

We have sufficient production capacity to ensure that goods can be delivered on time. We have professional after-sales teams around the world, this ensures prompt trouble shooting and resolution of any issues you may encounter.
Whether you are a utlity company, transformer distributor, or builder, you can purchase JiangsuYawei's power transformer with confidence,knowing that you are investing in a reliable and reputabe product.Experience the efficiency and reliablity of JiangsuYawei Transtormer tailored to meet your specific needs.

JSYW Pad mounted Transformer Product

Advanced Design: 100% Copper-wound, round coil, disc wound, slotted comb with sheet wound secondary, step lap mitered core with lower flux density.

High Efficiency Performance: Exceeds Energy Star and DOE energy efficiency standards , and meets the latest NEMA, ANSI and IEEE standards.

Cost Effective: Reduces utility and maintenance costs due to increased energy efficiency and superior design.

Quiet Operation: The combined effect of our precision hand-wound coils, completely varnishing the whole unit, and the step lap mitered core with lower flux density ensures minimal noise and vibration once installed.

Extended Life: Superior quality materials, superior design and expert craftsmanship deliver long-standing performance.

Proven: Provide safe, reliable power output in public space.

Cost-Efficient: Lower costs for installation upfront and promote increased savings.

Flexibility: New, reconditioned, or custom-built options are available for every application.

Customizable: From one to 1000 units, we build to spec for commercial & industrial use.

Parameters

Rating :	Up to 4000 kVA
Voltage Class:	Up to 33 kV
Frequency:	50/60 Hz
HV Connection:	Single / Dual feeder
HV Protection:	Bayonet Fuses, Load Break Switch,Current Limiting Fuses, Fault passage indicator
LV protection:	MCCB / MCB / SFU / HRC Fuses
HV & LV Metering:	Yes

Applications

Utilities today seek to create and connect new sources of power generation to meet growing global demand, while also managing grid reliability, costs and regulatory factors.

Residential areas: Providing power distribution for neighborhoods and housing developments

Commercial facilities: Supplying power to shopping centers, office buildings, and business parks

Industrial installations: Meeting the power requirements of factories, warehouses, and manufacturing plants

Utility companies: Supporting efficient power distribution in substations and utility networks
