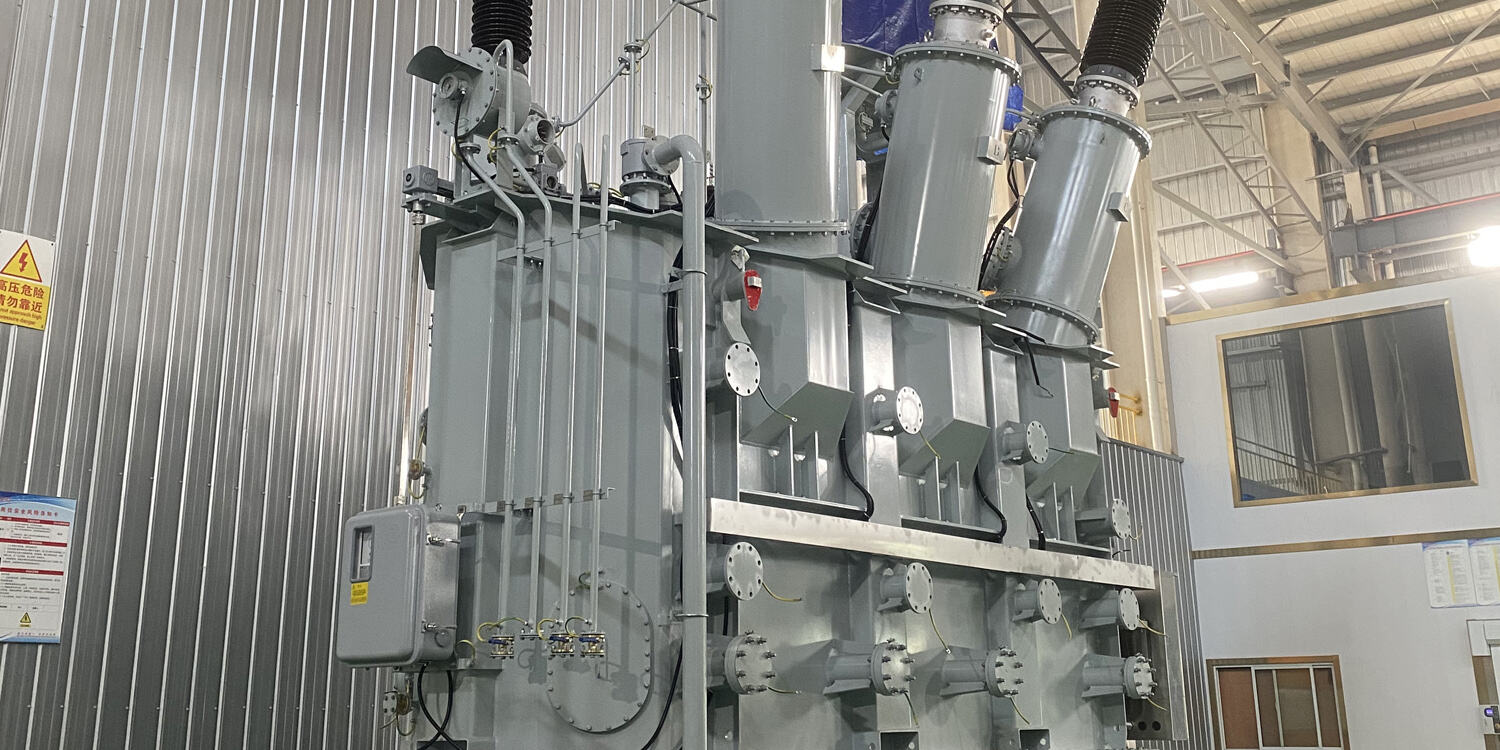

220kV Oil-immersed Three-phase Double-winding Unexcited Voltage Regulating

• Up to 240MVA

• Generator Step-up Transformers (Renewable and Nuclear)

• Transmission Network Transformers

• Distribution Small and Medium Transformers

• Transformers other than standard specifications are also manufactured according to customer request.

DOWNLOAD

Introduce
Company Advantages
Products Advantages
Parameters
Applications

What is a power transformer?

Power transformers are electrical instruments used in transmitting electrical power from one circuit to another without changing the frequency.

High-voltage transformer,use Japanese Toshiba analysis software and our company special calculation and validation procedures to the transformer core,winding, structural components, lead, fuel tanks, etc. Parts of the optimal design and carry on the omni- directional validation, ensure product performance.

Superior process equipment,elaborate material selection and efficient manufacturing,resulting in a transformer with a small volume, light weight,low loss,low-partial-discharge, low noise characteristics,the product quality is superior, energy conservation and environmental protection, easy installation and maintenance, reliable operation and effectively reduced products running costs.

Our product SSZ20-240000/220 has passed the short-circuit withstand capacity and all routine type tests of the National Transformer Quality Supervision and Inspection Center.

This product is stable,reliable,economical and environmentally friendly, and is suitable for power plants, substations, large industrial and mining petrochemical enterprises,etc.

Company Advantages

JiangsuYawei transtormers have been successtuly exported to severa countries incuding the United Stotes, Canada, Panama, Venezuela, Uzbekistan,Australia,and Bulgaria.

We have sufficient production capacity to ensure that goods can be delivered on time. We have professional after-sales teams around the world, this ensures prompt trouble shooting and resolution of any issues you may encounter.
Whether you are a utlity company, transformer distributor, or builder, you can purchase JiangsuYawei's power transformer with confidence,knowing that you are investing in a reliable and reputabe product.Experience the efficiency and reliablity of JiangsuYawei Transtormer tailored to meet your specific needs.

JSYW Power Transformer Product

The JSYW Power Transformer product is a premium-grade power transformer that provides reliable service to customers. The transformer is manufactured using high-quality raw material procured from the most reputed vendors in the industry.

Several features like easy installation and low maintenance cost ensure optimum performance under unfavorable weather conditions for long durations.

Parameters

Rated capacity(kVA)	Rated voltage and tapping range			Vector group	No Load Current(%)	Short-circuit impedance(%)	No load Losses(kW)	On load Losses(kW)
	HV	Tapping range	LV
31500	220 242	±2x2.5	6.36.6	YNd11	0.45	12~14	15	115
40000					0.45		18	134
50000					0.42		21	161
63000					0.42		25	188
75000			10.513.8		0.38		29	213
90000					0.35		34	246
120000					0.35		41	304
150000			10.513.8		0.32		49	360
160000					0.31		51	378
180000					0.29		56	413
240000					0.26		70	484

Applications

Power transformers used in electric power generation and distribution Used for reducing power losses during electric power transmission They are preferred in cases where the load is required to run at full capacity 24×7. It is used in high voltage step-up and step-down.
