Isolated Transformer

Galvanic isolation prevents the direct passage of electric current between circuits, providing a higher level of safety for users and protecting equipment from possible damage caused by overloads or short circuits.

DOWNLOAD

Introduce
Company Advantages
Products Advantages
Parameters
Applications

What is a isolated transformer?

An isolation transformer is an electrical device used to transfer electrical energy from a primary circuit to a secondary circuit, while ensuring galvanic isolation between the two circuits.

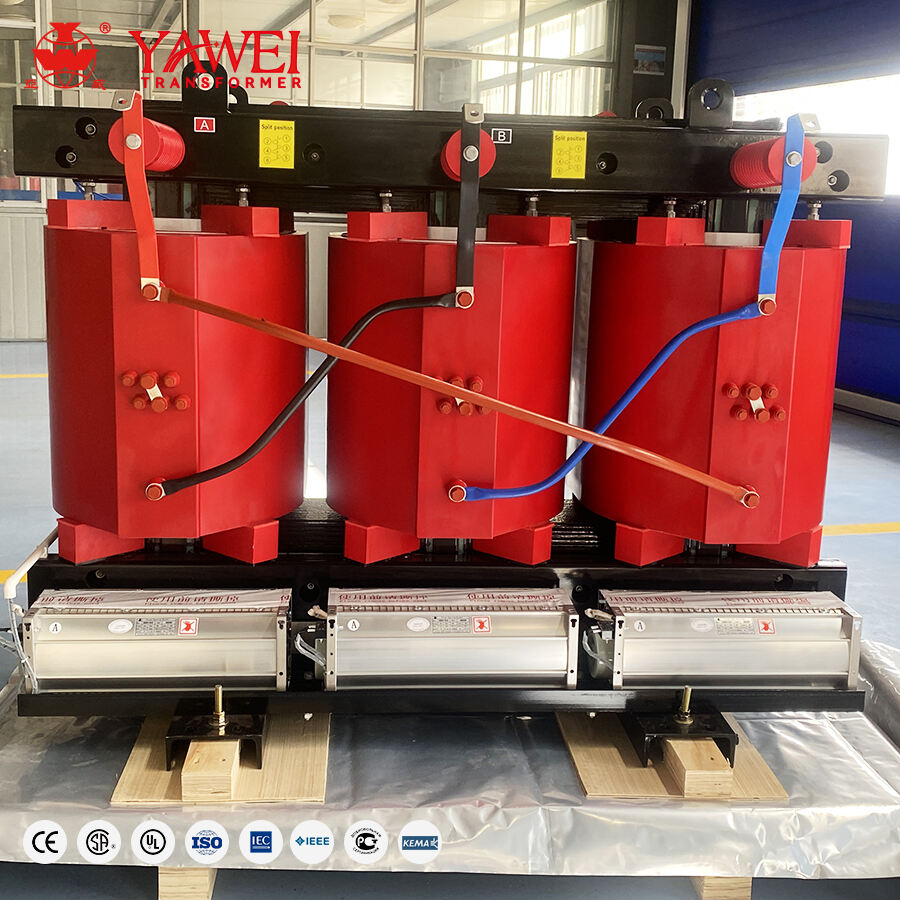

High Precision Dry Type Power Distribution Transformer China Manufactured Three Phase MV&HV Transformer 10KV Input 480V440V

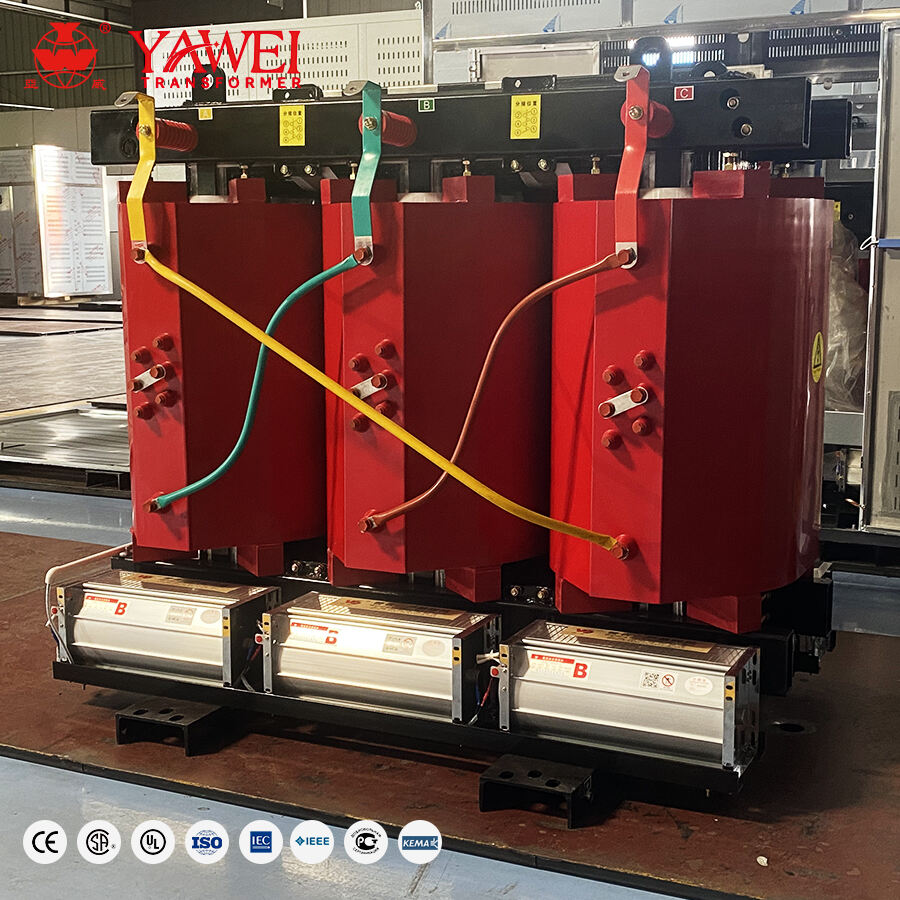

High Voltage Industrial Power Dry Transformer 50kVA-125kVA Three Phase Epoxy Cast Resin Type Input 10KV Output 480V
Resin Insulated Dry Type Transformer 500kva 1000kva 35kv Three 50Hz Indoor Outdoor Substation Industrial Dry Type Transformer

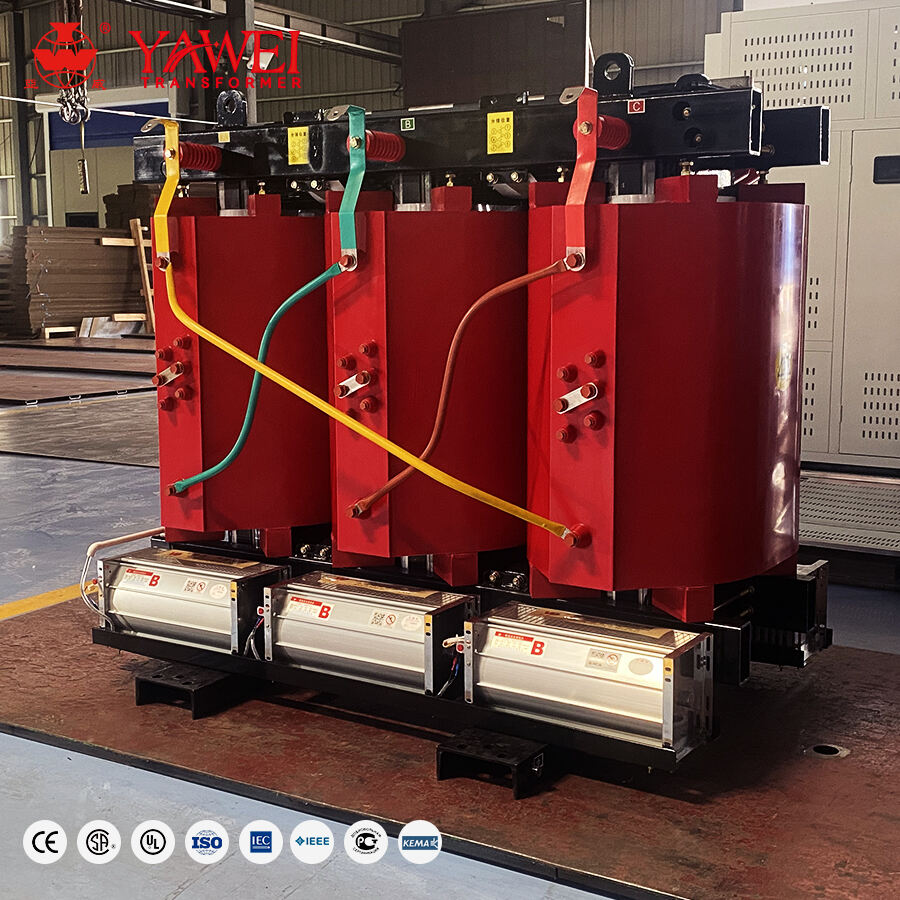

SCB-11 1250kva 10kv Epoxy Resin Dry-Type Distribution Transformer 50Hz 60Hz Three Phase Output 480V 440V
SCB11 Dry-Type Three-Phase Step-Down Power Transformer 380V440V480V Output 5060Hz Frequency 35KV Input ANAF Cooling

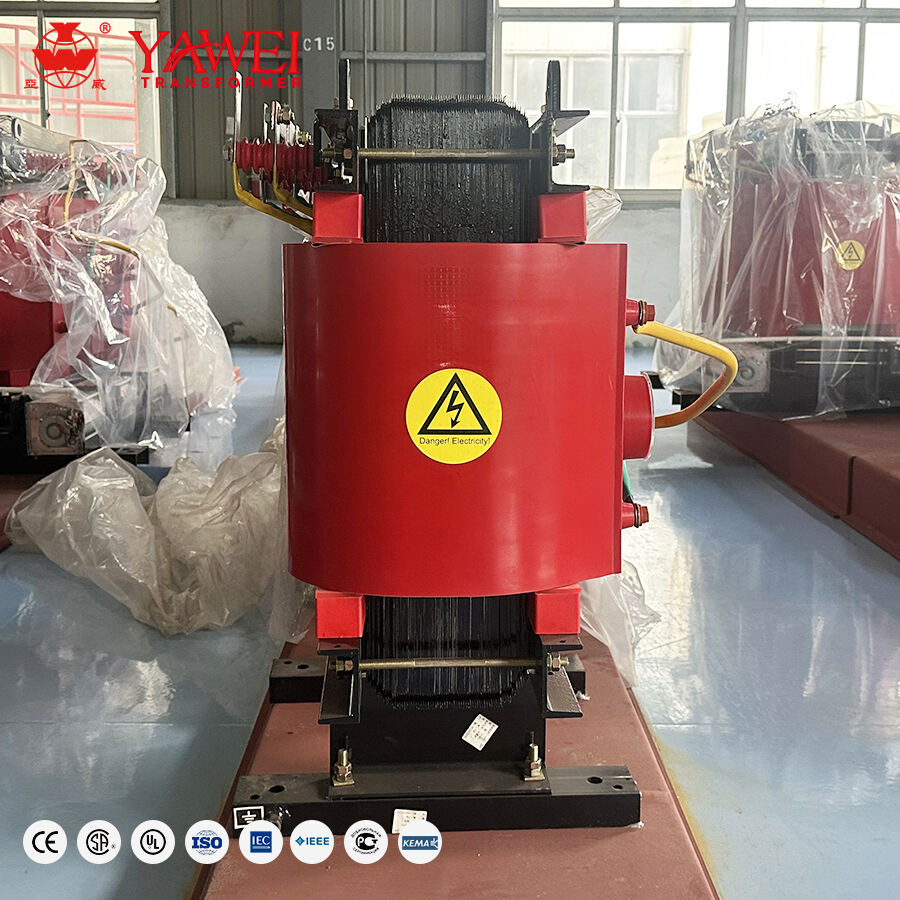

SCB11 High Performance Indoor Dry Type 3-Phase MV&HV Transformer Dry Step 110v-480v Output Voltage 50Hz 10kv 35kv 380v 440v

Transformers consist of two windings wound around a ferromagnetic core, and are designed to have a specific transformation ratio, which determines the output voltage with respect to the input voltage.

Company Advantages

JiangsuYawei transtormers have been successtuly exported to severa countries incuding the United Stotes, Canada, Panama, Venezuela, Uzbekistan,Australia,and Bulgaria.

We have sufficient production capacity to ensure that goods can be delivered on time. We have professional after-sales teams around the world, this ensures prompt trouble shooting and resolution of any issues you may encounter.
Whether you are a utlity company, transformer distributor, or builder, you can purchase JiangsuYawei's power transformer with confidence,knowing that you are investing in a reliable and reputabe product.Experience the efficiency and reliablity of JiangsuYawei Transtormer tailored to meet your specific needs.

JSYW isolated transformer Product

Better Power Quality

Less Noise Disruption

Harmonics Correction

Earthing Failure Prevention

Reduction in Power Surges

Improved Safety

Parameters

Phase	Three phase
capacity	0.5KVA-2000KVA
Input voltage	Customize various voltages according to user needs
The output voltage	Customize various voltages according to user needs
Output voltage accuracy	土1%
Voltage change rate	≤1.5%
Output waveform distortion	No distortion (compared to the input waveform)
Insulation class and IPrating	Class F, Class H, and HC are available (normally Class F) IP rating: P00, IP20, etc.
Work efficiency	≥98%
Applicable frequency	50/60Hz
Connection method	Any combination of Y/△
Overload capability	Allows more than 1.2 times rated load to work for 4 hours (long-term full load)

Applications

It can be widely used in subways, high-rise buildings, airports, stations, docks, industrial and mining enterprises, and tunnels for power transmission and distribution.

Industrial Field
Petrochemical Industry
Power System
Transportation
