What is a dry-type transformer?

To begin with, a dry type transformer, also known as cast resin type transformer is solid. Meaning it doesn’t have any rotating parts. Because of this, these types of transformers maximize the use of eco-friendly temperature insulation systems to function properly.

Unlike the liquid-type transformers that are dependent on other materials such as oil and fire to function, a dry transformer works through voltage changing. So, when dealing with these types of transformers it’s the air that gets cooled and not the liquid as with other types. You simply have to place the dry transformer in a well-ventilated room for the coils to cool with ease.

When using a dry type of transformer, you don’t have to keep it inside fire-resistant vaults or catch basins as you would do with conventional liquid transformers. Also, they do not release any harmful gases, hence environmentally friendly, even for indoor installation.

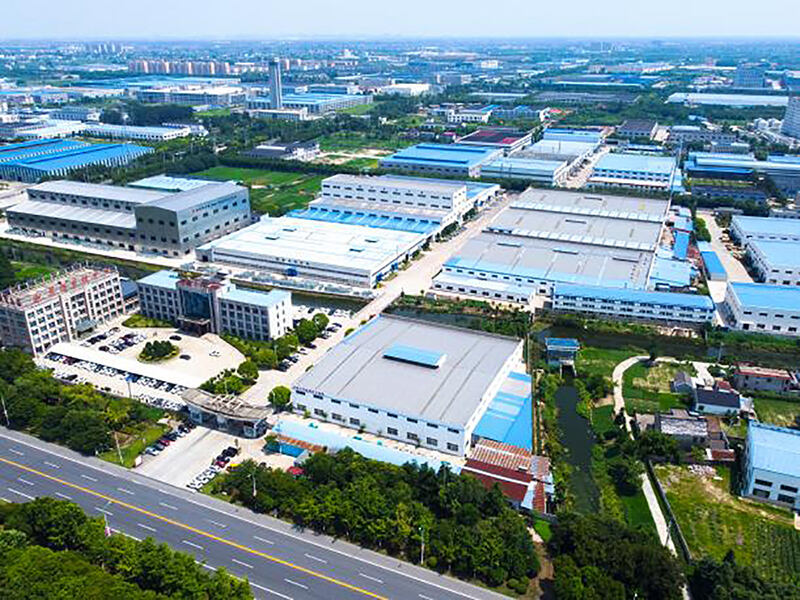

Company Advantages

JiangsuYawei transtormers have been successtuly exported to severa countries incuding the United Stotes, Canada, Panama, Venezuela, Uzbekistan,Australia,and Bulgaria.

We have sufficient production capacity to ensure that goods can be delivered on time. We have professional after-sales teams around the world, this ensures prompt trouble shooting and resolution of any issues you may encounter.
Whether you are a utlity company, transformer distributor, or builder, you can purchase JiangsuYawei's power transformer with confidence,knowing that you are investing in a reliable and reputabe product.Experience the efficiency and reliablity of JiangsuYawei Transtormer tailored to meet your specific needs.

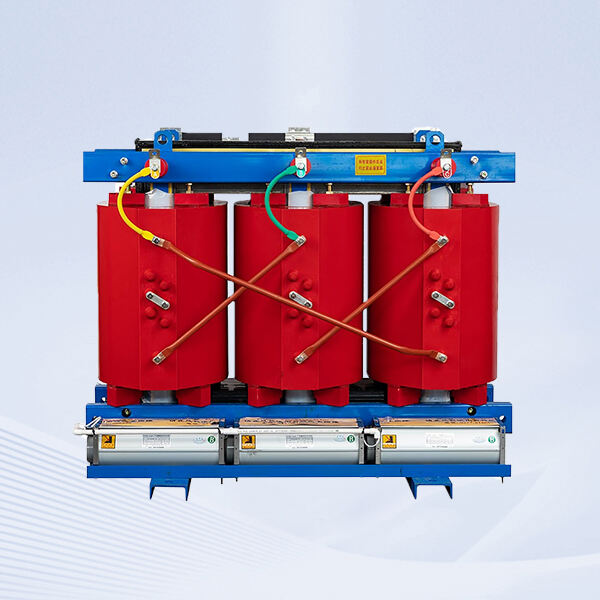

JSYW Dry type Transformer Product

Self-extinguishing, low fire hazard

Zero Oil Usage

Eco-friendly and safe

Low cost installation and lower load losses

Low Maintenance

Sustainable

Parameters

Technical date of SCB13 series 10kV epoxy-resin insulation dry-type transformer

Rated Capacity (kVA)	Voltage combined			Vector-group	No-load Loss (w)	Load loss under different insulation heat resistance levels (w)			Short-circuitImpendance (％)
Rated Capacity (kVA)	HV(kV)	Tapping Ranges	LV(kV)	Vector-group	No-load Loss (w)	B(100℃)	P(120℃)	H(45℃)	Short-circuitImpendance (％)
30	6 6.3 6.6 10 10.5 11	±5％ ±2× 2.5％	0.4	Dyn11 Yyn0	135	605	640	685	4.0
50					195	845	900	965
80					265	1160	1240	1330
100					290	1330	1415	1520
125					340	1565	1665	1780
160					385	1800	1915	2050
200					445	2135	2275	2440
250					515	2330	2485	2665
315					635	2945	3125	3355
400					705	3375	3591	3850
500					835	4130	4390	4705
630					965	4975	5290	5660
630					935	5050	5365	5769	6.0
800					1095	5895	6265	6715
1000					1275	6885	7315	7885
1250					1505	8190	8720	9335
1600					1765	9945	10555	11320
2000					2195	12240	13005	14005
2500					2590	14535	15455	16605
1600					1765	11050	11660	12510	8.0
2000					2195	13520	14360	15400
2500					2950	15980	17000	18260

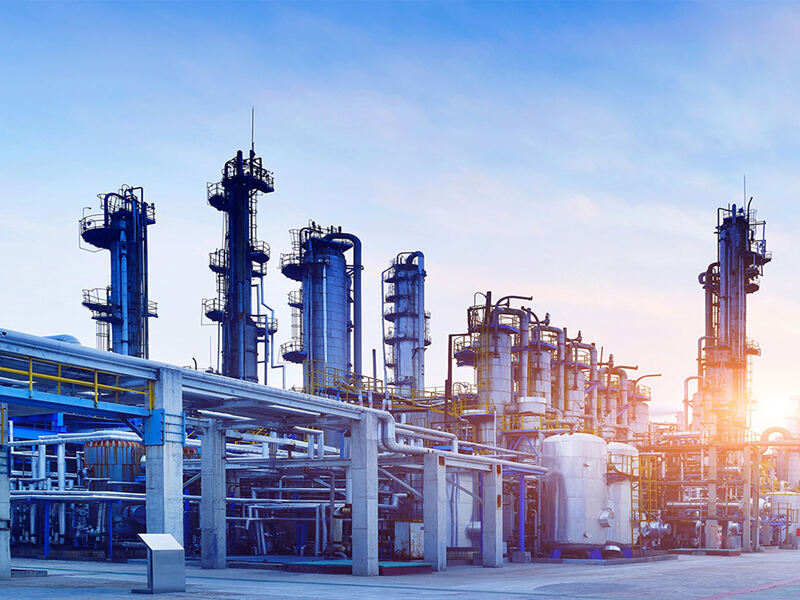

Applications

Dry transformers are best used in industrial, commercial, and even utility applications. This is because they can comfortably meet both small and medium voltage needs.
